CATEGORY
Casement Doors
The aluminium casement doors are available in a wide variety of colours, finishes and formats to best complement and enhance your project.
As opposed to traditional casement doors, our premium range is fitted with filiform hinges for a slimmer, sleeker look.
AluK premium casement doors come with open-in or open-out options to meet the different needs of different spaces. They are also available thresholdless for safe & easy access.
Multiple threshold solutions to meet all kinds of requests.
Available with:
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

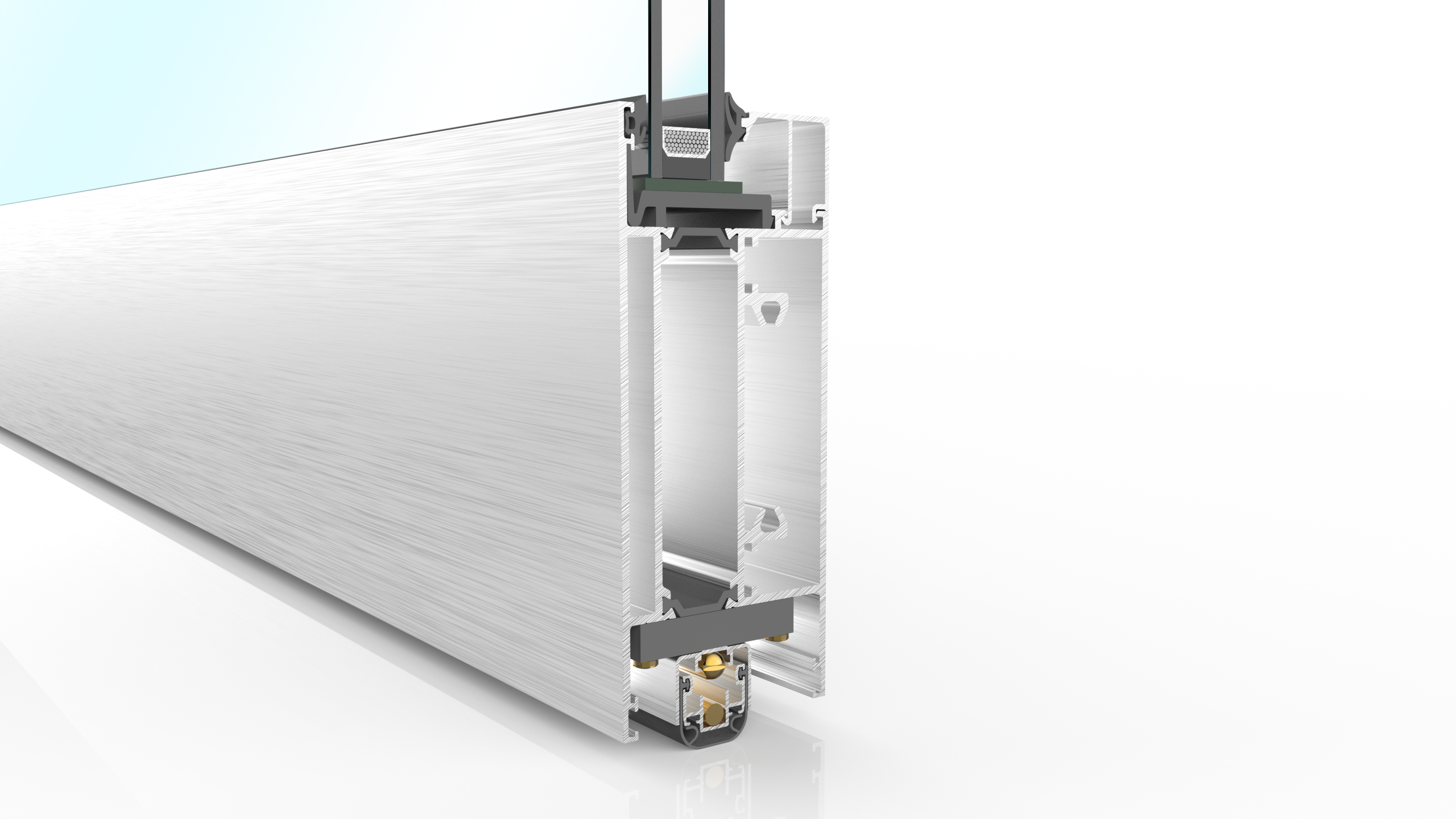

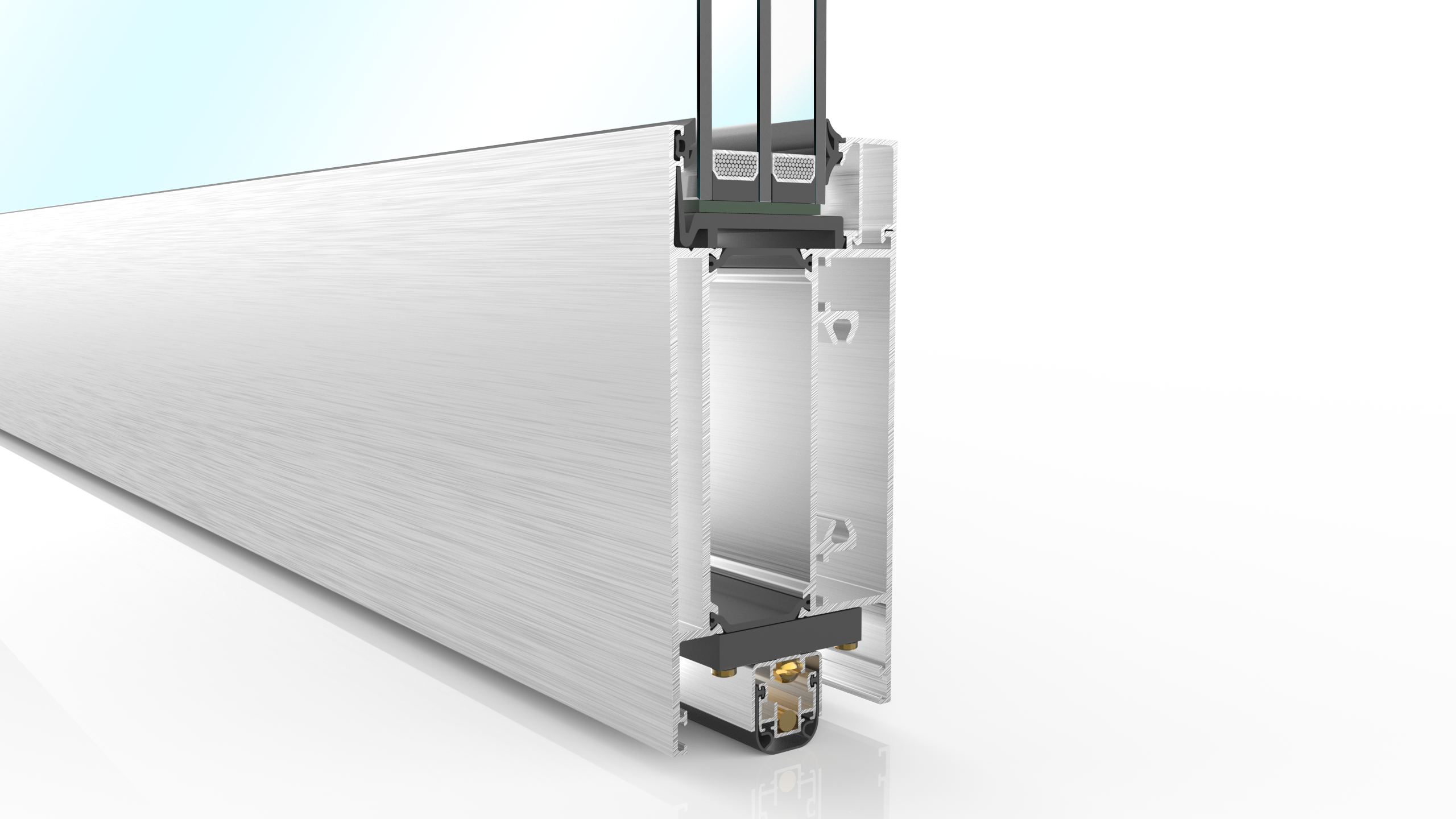

| 67ID | 77ID | |
|---|---|---|
| Performances | ||
| air_permeability : | 国际8级 | 国际8级 |
| water_resistance : | 国际6级 | 国际6级 |
| wind_load : | 国际9级 | 国际9级 |
| Uw value W/m²K (Double glazing) : | from 1.80 | from 1.40 |
| Uw value W/m²K (Triple glazing) : | from1.20 | from 1.00 |
| Size limits | ||
| frame_dimension : | 67.2mm | 77.2mm |
| sash_dimension : | 67.2mm | 77.2mm |
| min_glass_thick : | 20 | 20 |
| Max glass thickness (mm) : | 50 | 60 |
| Max sash width (mm) : | 1100mm | 1100mm |
| Max sash height (mm) : | 2800mm | 2800mm |
| Maximum sash load (kg) : | 160KG | 160KG |
