CATEGORY
Sliding Doors
Sliding doors’ large panes of glass make it possible to enjoy natural light throughout the day while the option for two to three tracks and up to six panels offer the versatility to turn your designs into reality.
Bespoke rollers have been designed to ensure smooth, easy operation of these large glass doors. In addition to our normal sliders, we also offer lift & slide solutions which make the already amazing experience even more effortless; thanks to a unique mechanism developed by our engineers, the whole sash can be lifted with only the lightest touch. There is also an upgraded version with 50mm slim interlock for extraordinary views.
AluK TT classic sliding doors are available in a variety of series, each with its own distinct look and feel. Each option offers an assortment of configurations and varying levels of performance.
Available with:
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

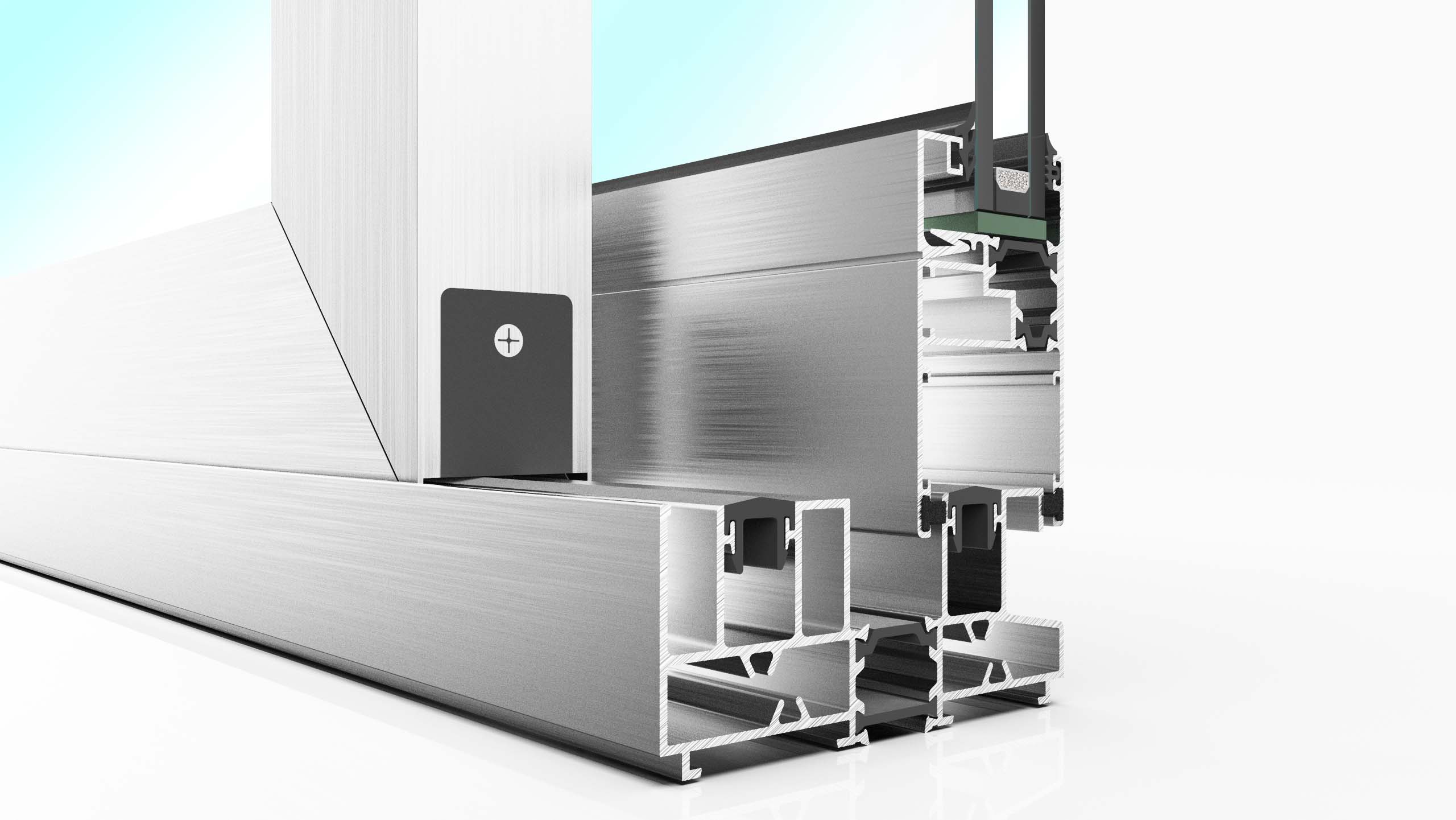

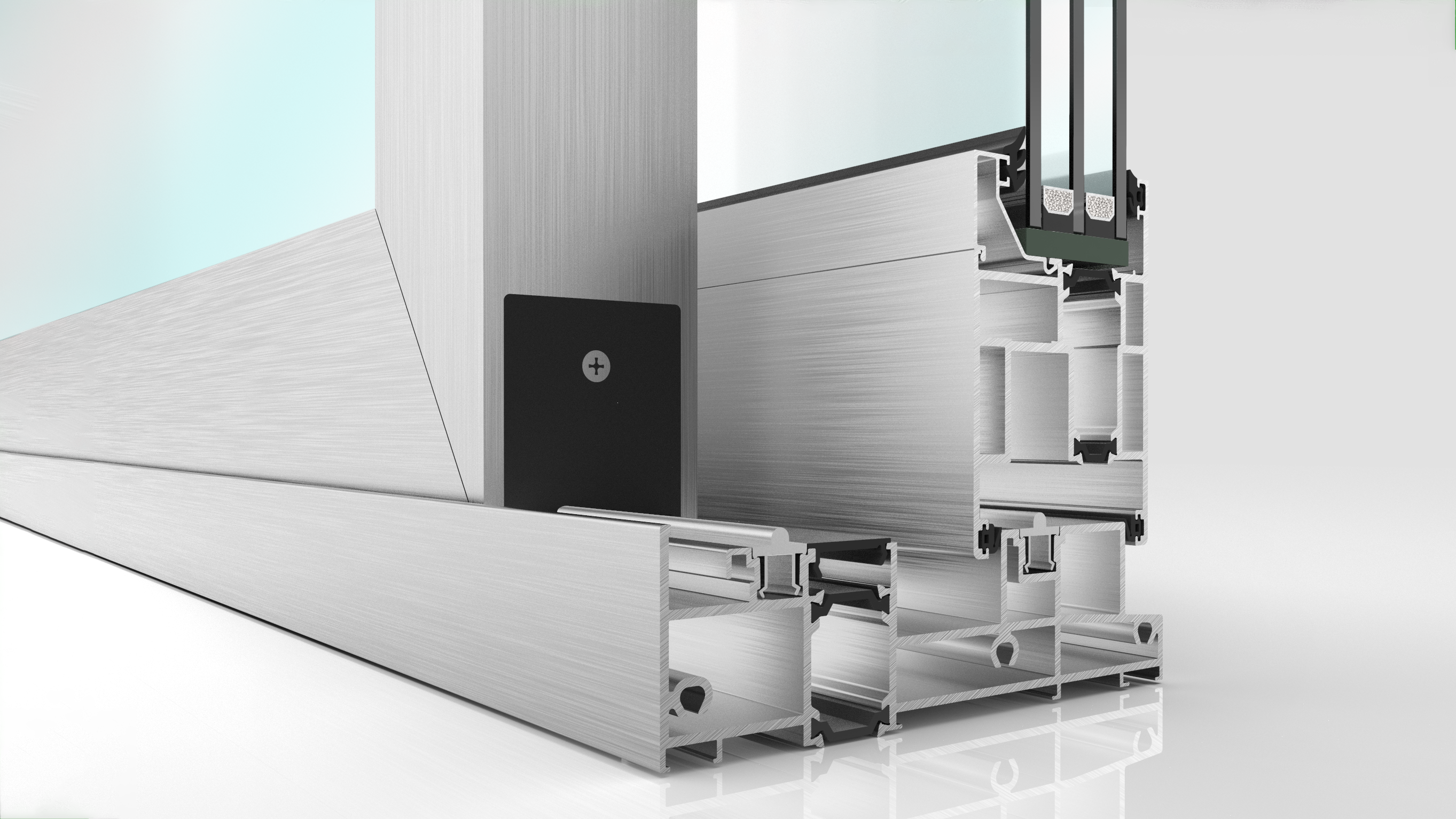

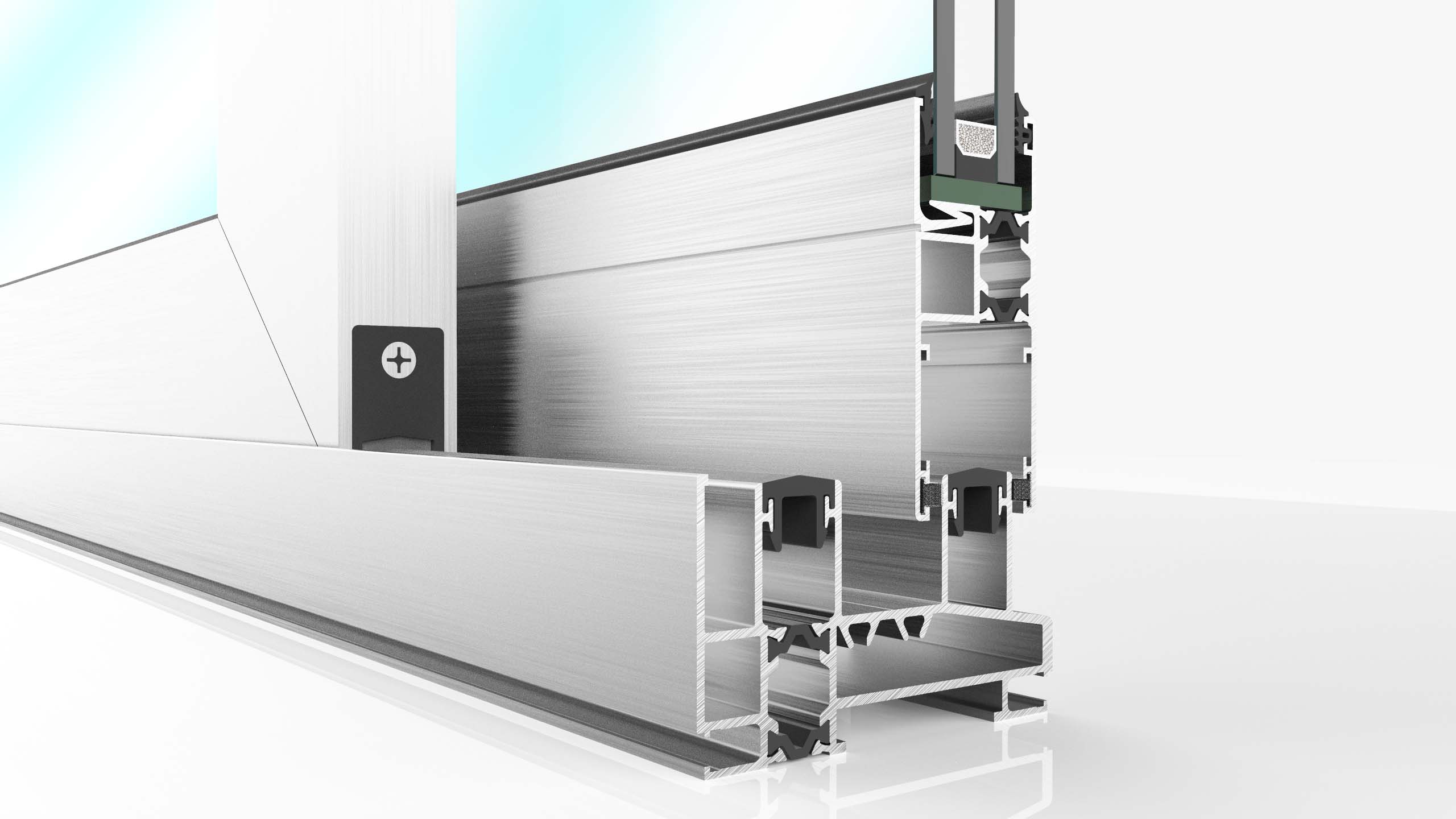

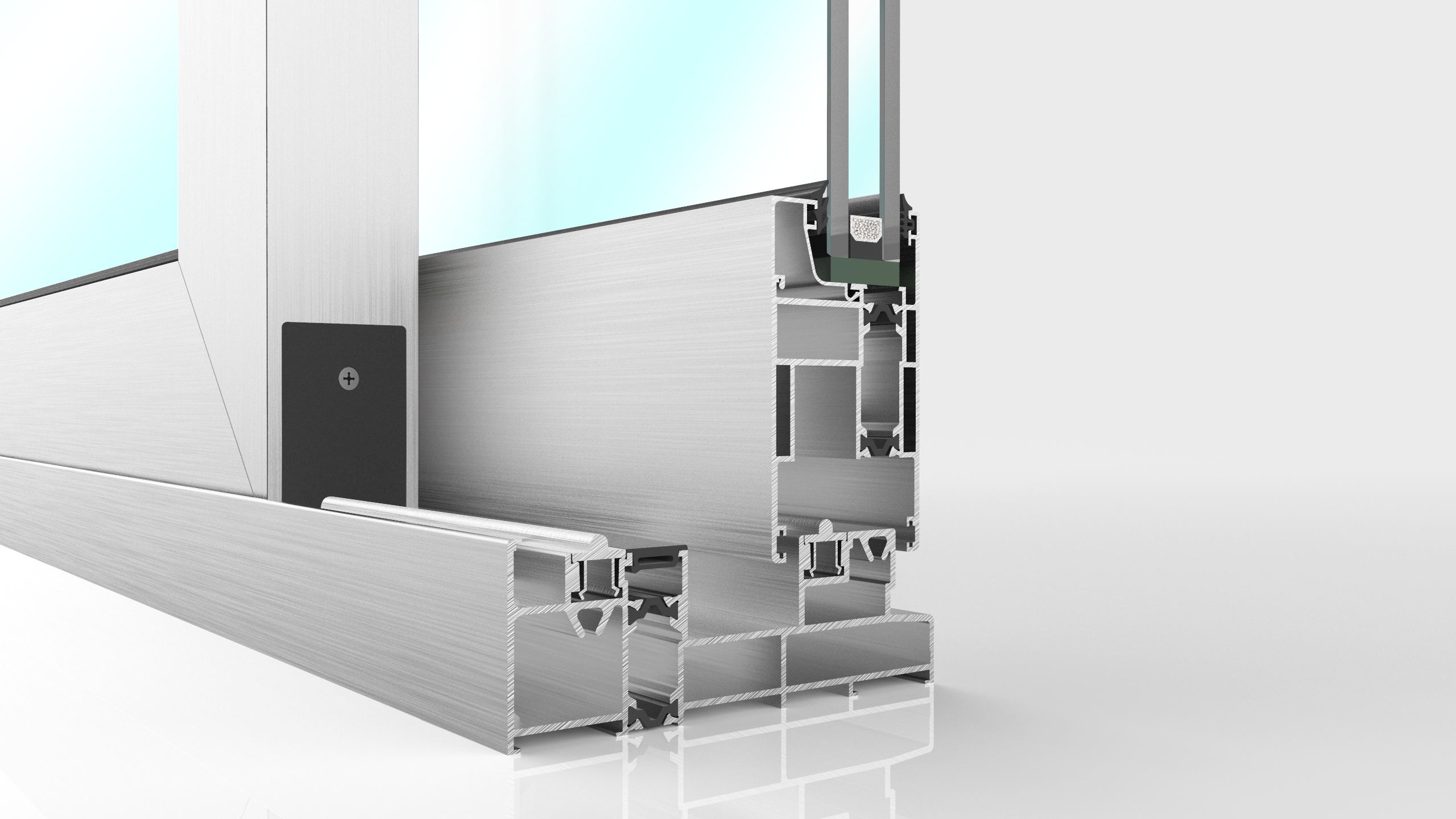

| SC95TT | SC115TT | SC140TT | SC170TT | |
|---|---|---|---|---|
| Performances | ||||
| air_permeability : | 国际8级 | 国标8级 | 国标7级 | 国标8级 |
| water_resistance : | 国际5级 | 国标5级 | 国标5级 | 国标6级 |
| wind_load : | 国际9级 | 国标9级 | 国标9级 | 国标9级 |
| Uw value W/m²K (Double glazing) : | from 2.15 | from 2.00 | from 2.03 | from 1.70 |
| Uw value W/m²K (Triple glazing) : | from 1.67 | from 1.47 | from 1.50 | from 1.20 |
| Size limits | ||||
| frame_dimension : | 95.0mm | 115.5mm | 140.0mm | 170mm |
| sash_dimension : | 36.0mm | 49.0mm | 55.2mm | 70.0mm |
| min_glass_thick : | 6 | 6 | 10 | 24 |
| Max glass thickness (mm) : | 24 | 36 | 40 | 55 |
| Max sash width (mm) : | 1500mm | 1500mm | 2500mm | 2500mm |
| Max sash height (mm) : | 2600mm | 2600mm | 3000mm | 3000mm |
| Maximum sash load (kg) : | 200KG | 200KG | 300/400KG | 300/400KG |
