TT CLASSIC ALUMINIUM CASEMENT DOORS

CATEGORY

Casement Doors

Description

Aluminium casement doors are a modern, stylish alternative to traditional wooden or PVC-U doors. They are simple and easy to maintain, and offer greater durability over the long-term. Years of exposure to the elements will wear wooden doors down and PVC-U doors gradually deform through thermal degradation, but whether inside or out, AluK’s aluminium casement doors last longer, making them the perfect choice for entry or balcony entrances.

Available as a single or double door, our casement doors are designed with safety and security at their core. We offer several optional features for added security, including multipoint locking mechanisms for enhanced security.

  • OVERVIEW
  • TECHNICAL DATA
  • DOWNLOAD COLLATERAL

Design features

Easy to maintain and durable.

Options

Available with:

  • multi locking points

Application type

The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

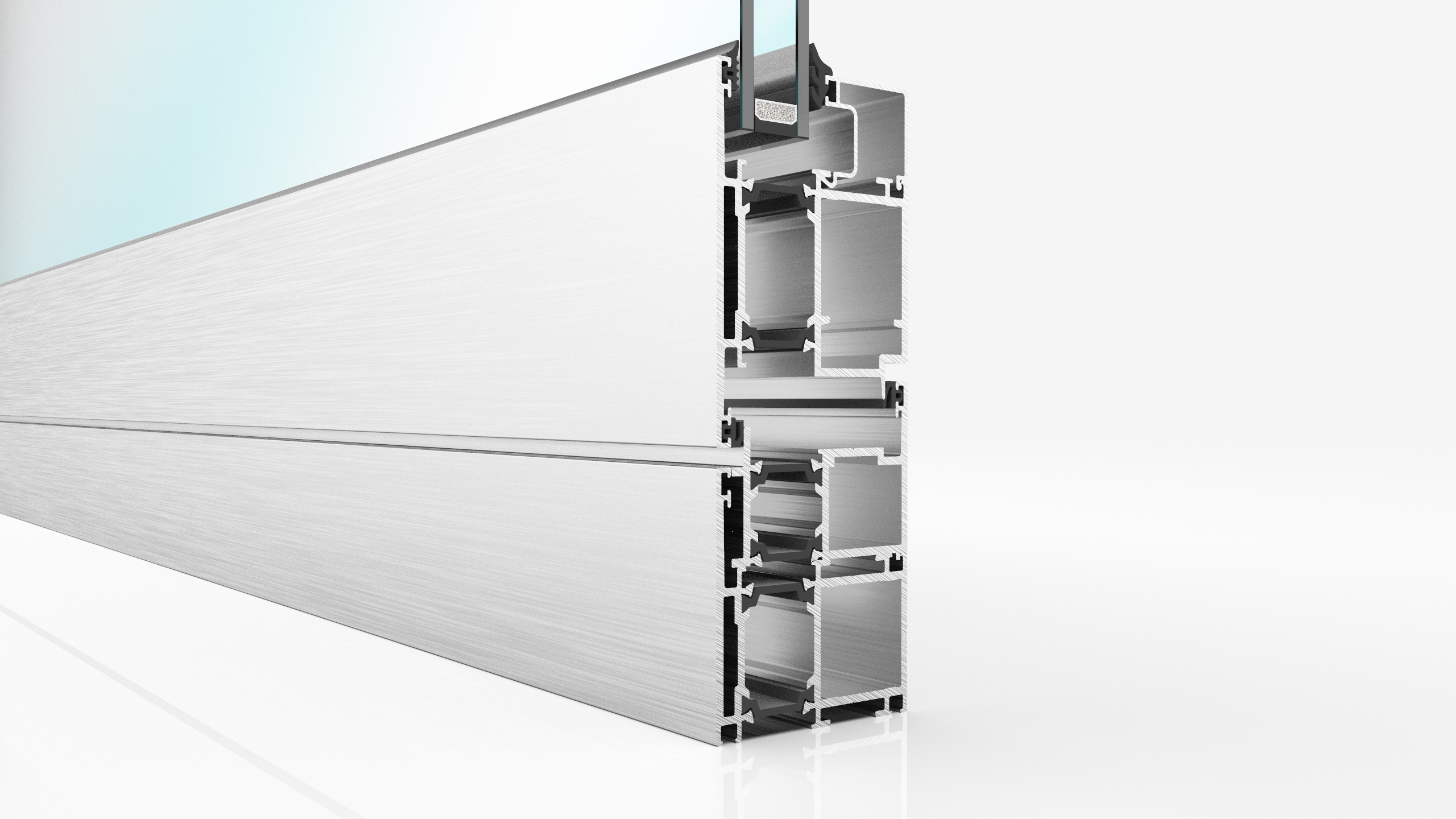

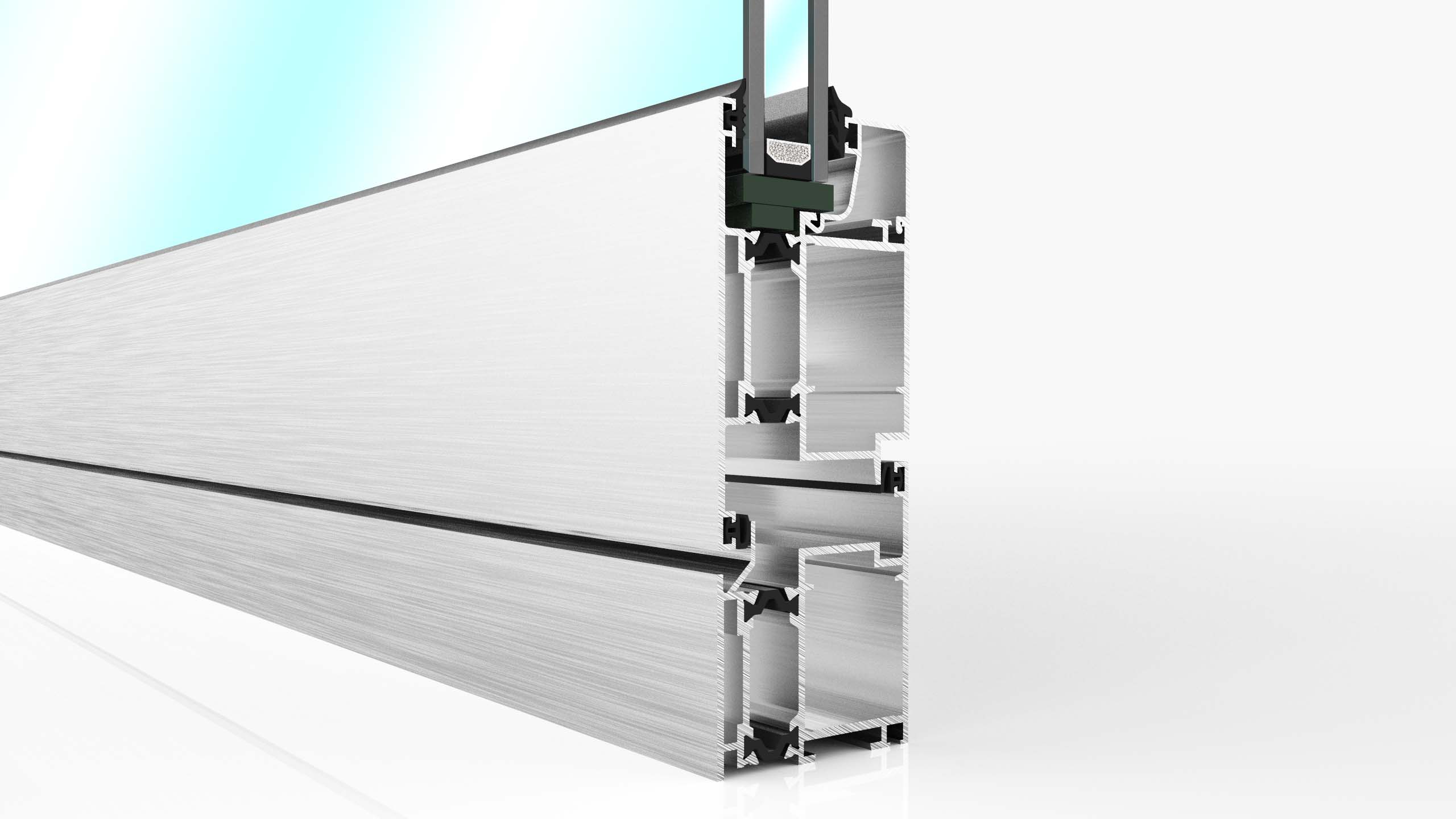

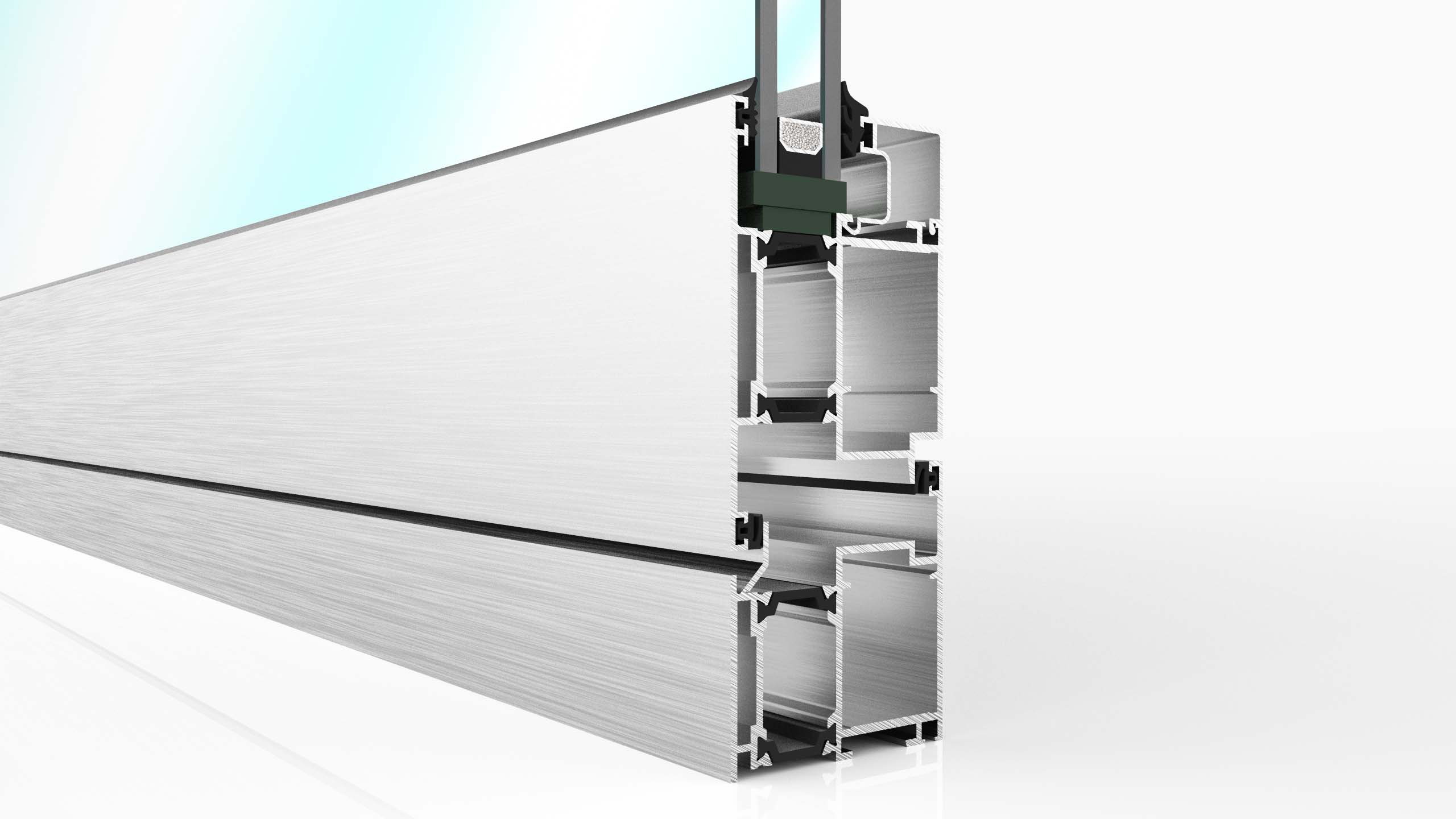

  70TT 72TT 63TT
Performances
air_permeability : 国际8级 国际8级 国际8级
water_resistance : 国际6级 国际6级 国际6级
wind_load : 国际9级 国际9级 国际9级
Uw value W/m²K (Double glazing) : from 1.93 from 1.88 from 2.10
Uw value W/m²K (Triple glazing) : from 1.56 from 1.50 from 1.68
Size limits
frame_dimension : 64mm 66mm 55mm
sash_dimension : 64mm 66mm 55mm
min_glass_thick : 18mm 18mm 10mm
Max glass thickness (mm) : 47mm 49mm 40mm
Max sash width (mm) : 900mm 900mm 900mm
Max sash height (mm) : 2600mm 2600mm 2600mm
Maximum sash load (kg) : 120KG 120KG 120KG
Solutions
Inward opening : yes yes yes
Outward opening : yes yes yes
