Sliding Doors

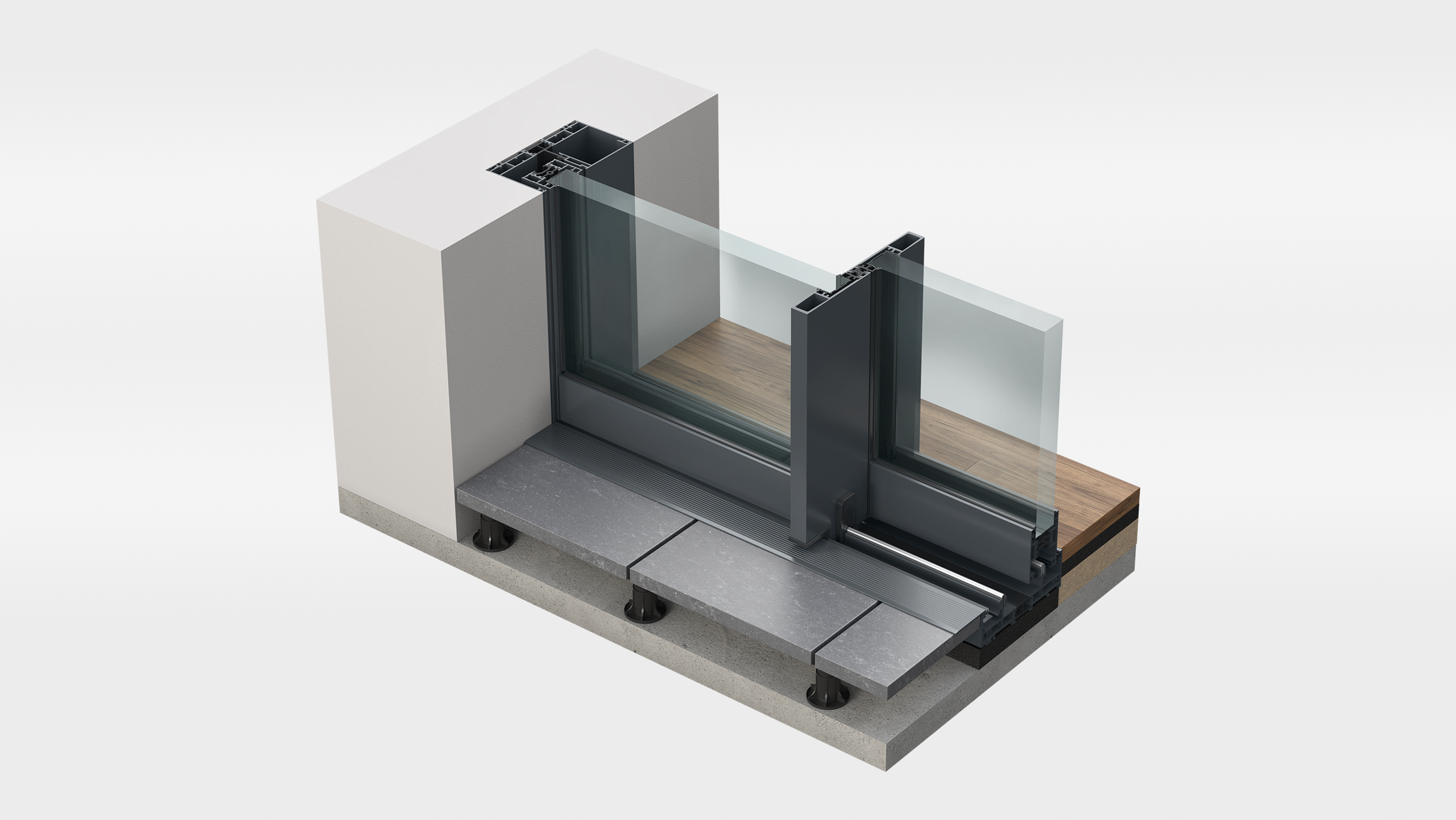

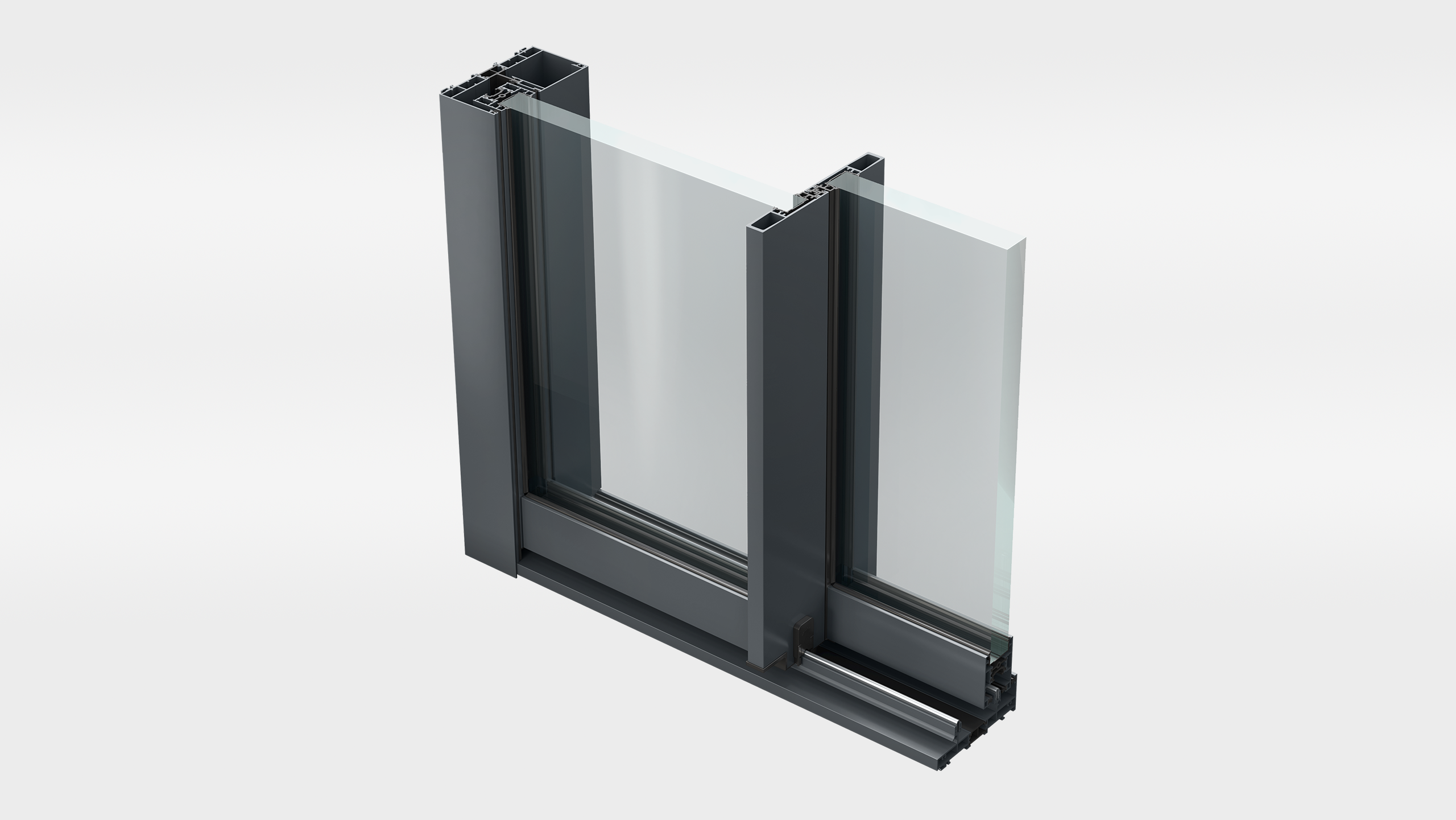

The Infneo inline slider breaks away from conventional design constraints with its maximised glazing area.
Minimal sightlines - courtesy of the fully concealed outer frame, hidden sash and unltra slim 21mm interlock - mean glazed expanses that let in maximum light, to create a beautifully bright and welcoming interior. The Infneo inline slider offers extensive fexibility to create bespoke design solutions. It is available with panel sizes up to 3m in height and up to 3m in width.
Though minimalist in design, the Infneo inline slider also delivers zero-compromise on performance and engineering to suit even the most demanding projects.
The Infneo inline sliding door offers premium contemporary design at a price-point close to that of a regular slider, marking a super sleek upgrade on standard aluminium sliding doors.
Available with:
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.
| INFINEO | |
|---|---|
| Performances | |
| air_permeability : | 国标8级 |
| water_resistance : | 国标5级 |
| wind_load : | 国标9级 |
| Uw value W/m²K (Double glazing) : | from 1.30 |
| Uw value W/m²K (Triple glazing) : | from 0.90 |
| Size limits | |
| frame_dimension : | 146mm |
| sash_dimension : | 53mm |
| min_glass_thick : | 24mm |
| Max glass thickness (mm) : | 32mm |
| Max sash width (mm) : | 3000mm |
| Max sash height (mm) : | 3000mm |
| Maximum sash load (kg) : | 350/450KG |
