Sliding Windows
For windows that don’t occupy any extra interior or exterior space, sliding windows are the ideal choice. Whether a sink tap makes turn & tilt windows impractical in the kitchen or a narrow hallway makes it inconvenient to have outward opening windows, our classic sliding windows provide the versatility you need.
AluK’s classic sliding windows have been tested and installed in many projects over the years. Their dual wheel structure and sleek sliding track give them reliable, effortless smooth operation.
Designed with thermal break solution, it also helps to conserve energy and create a cosy, comfortable living space.
The dual wheel structure and sleek sliding track provides reliable, effortless smooth operation.
Available with:
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

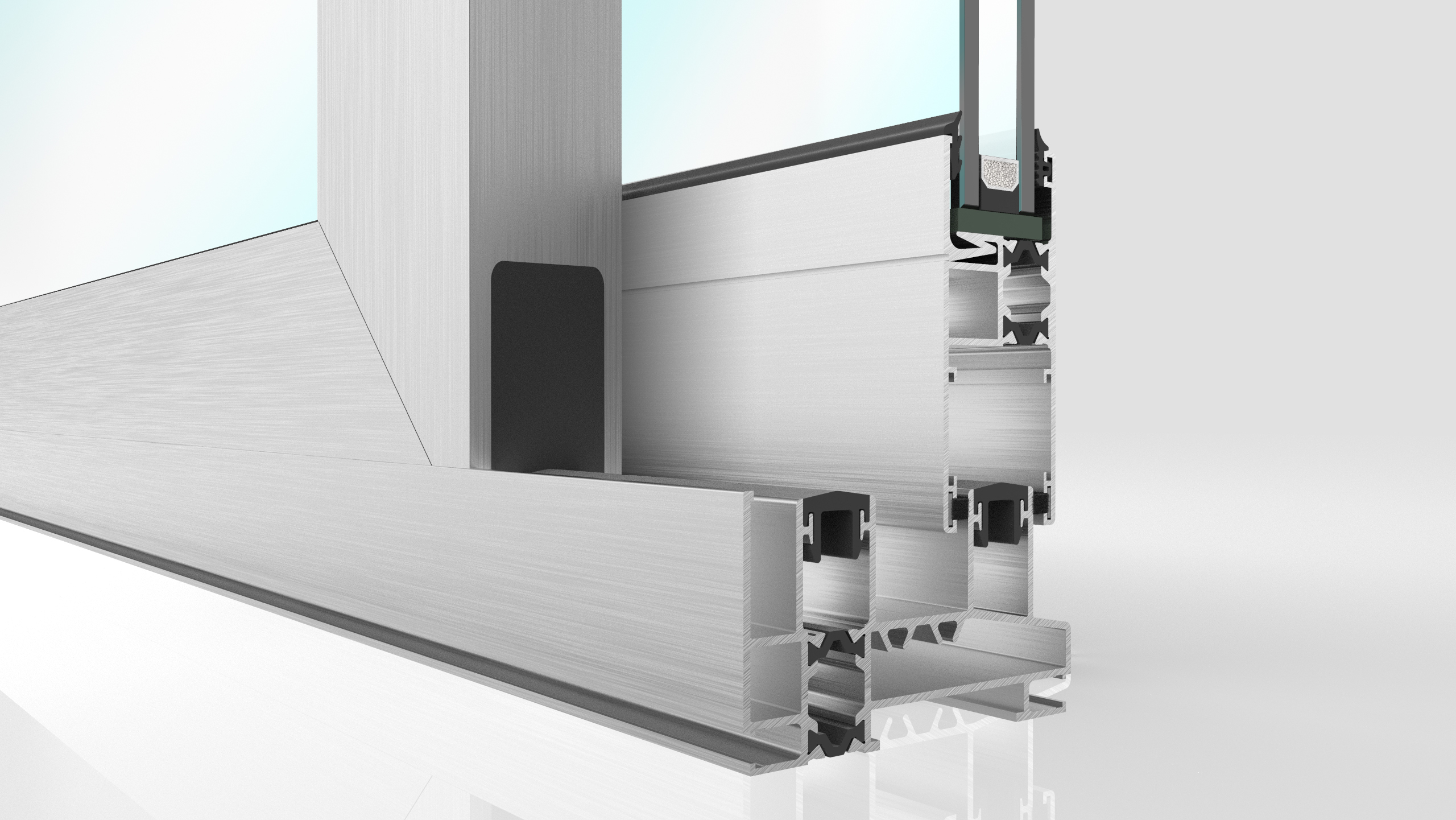

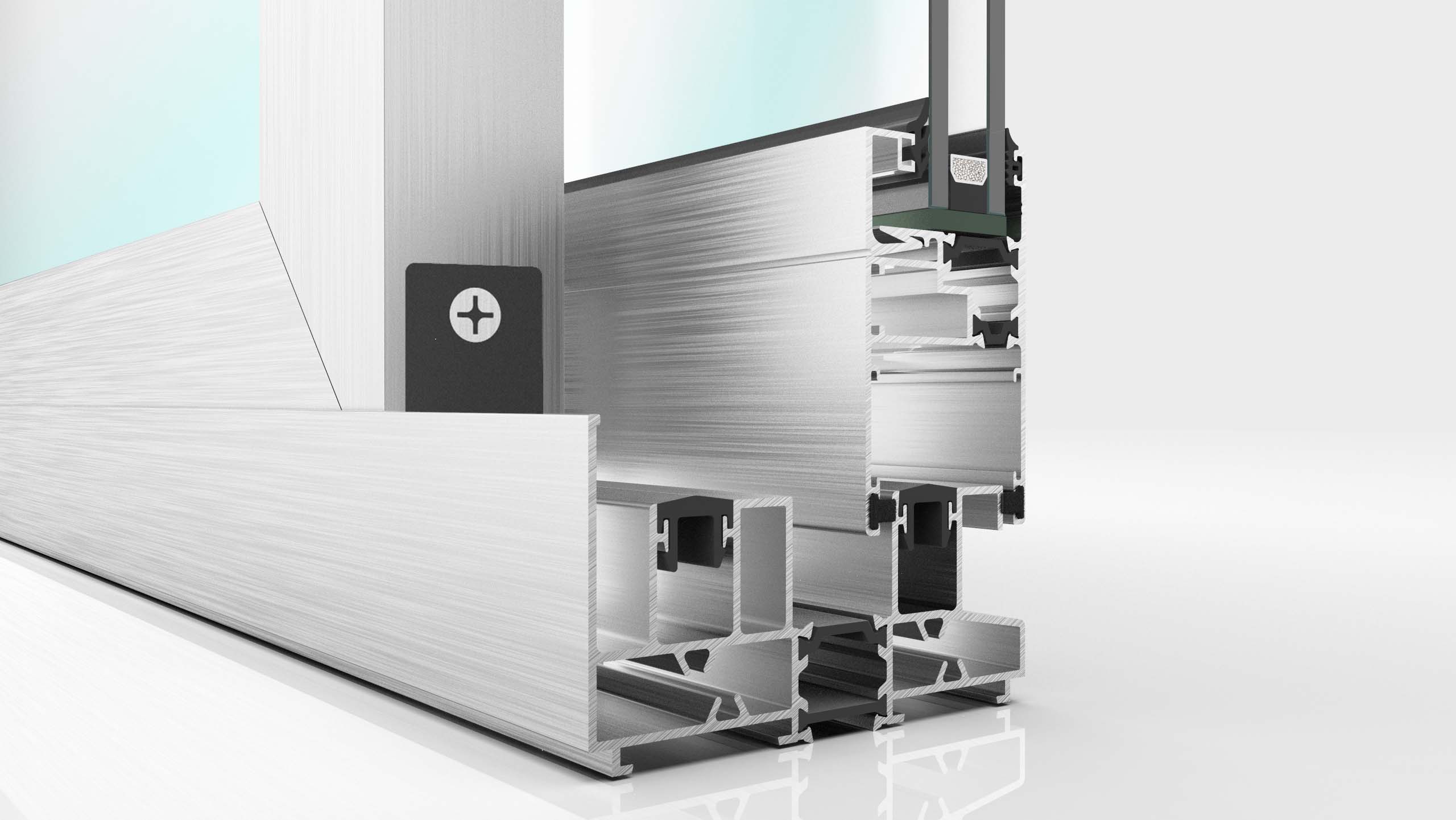

| SC115TT | SC95TT | |
|---|---|---|
| Performances | ||
| air_permeability : | 国际8级 | 国际8级 |
| water_resistance : | 国际5级 | 国际5级 |
| wind_load : | 国际9级 | 国际9级 |
| Uw value W/m²K (Double glazing) : | from1.95 | from 2.15 |
| Uw value W/m²K (Triple glazing) : | from1.47 | from 1.67 |
| Size limits | ||
| frame_dimension : | 115.5mm | 95.0mm |
| sash_dimension : | 49.0mm | 36.0mm |
| min_glass_thick : | 20 | 6 |
| Max glass thickness (mm) : | 36 | 24 |
| Max sash width (mm) : | 1500mm | 1500mm |
| Max sash height (mm) : | 2600mm | 2600mm |
| Maximum sash load (kg) : | 150KG | 150KG |
