Application type
Chinese style architectural project
CHINESE TRADITIONAL SERIES
CATEGORY
Casement Windows
Description
AluK can provide customised solutions for traditional Chinese architecture. While retaining the essence of traditional culture in the design, we integrate it with design concepts for today's buildings, such as energy saving, sound insulation and safety performance, to create windows that preserve traditional culture and meet the needs of modern living as well.
Whether it is a villa, a restoration of an ancient building or a new Chinese style architectural project, solutions can be tailored to the specific needs and stylistic features of the project.
- OVERVIEW
- TECHNICAL DATA
- DOWNLOAD COLLATERAL

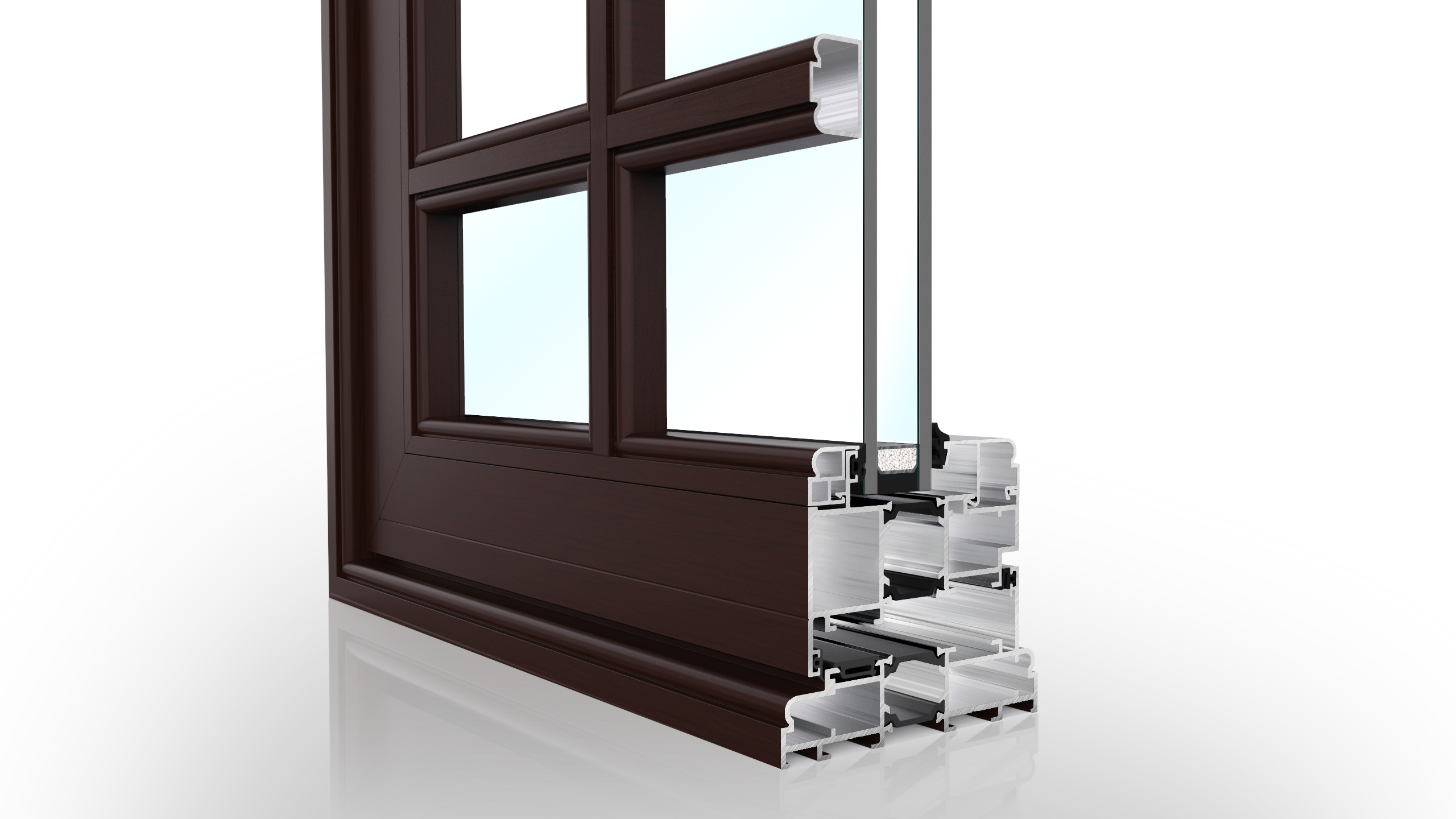

| 82TTH-Z | |
|---|---|
| Performances | |
| air_permeability : | 国标8级 |
| water_resistance : | 国标6级 |
| wind_load : | 国标9级 |
| Uw value W/m²K (Double glazing) : | from 1.72 |
| Uw value W/m²K (Triple glazing) : | from 1.30 |
| Size limits | |
| frame_dimension : | 108mm |
| sash_dimension : | 91mm |
| min_glass_thick : | 24mm |
| Max glass thickness (mm) : | 48mm |
| Max sash width (mm) : | 1200mm |
| Max sash height (mm) : | 2200mm |
| Maximum sash load (kg) : | 80KG |
| Solutions | |
| Outward opening : | yes |
