CATEGORY
Casement Windows
For open-out windows, safety is built into every design with optional anti-falling devices and child locks.
The casement windows are designed to provide comfort even in extreme weather and are tested to meet the highest national standards, while included thermal breaks for cosy & comfortable living environment with lower energy consumption.
Excellent performance in terms of air permeability, water tightness, wind resistance, thermal insulation and sound reduction.
Available with:
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

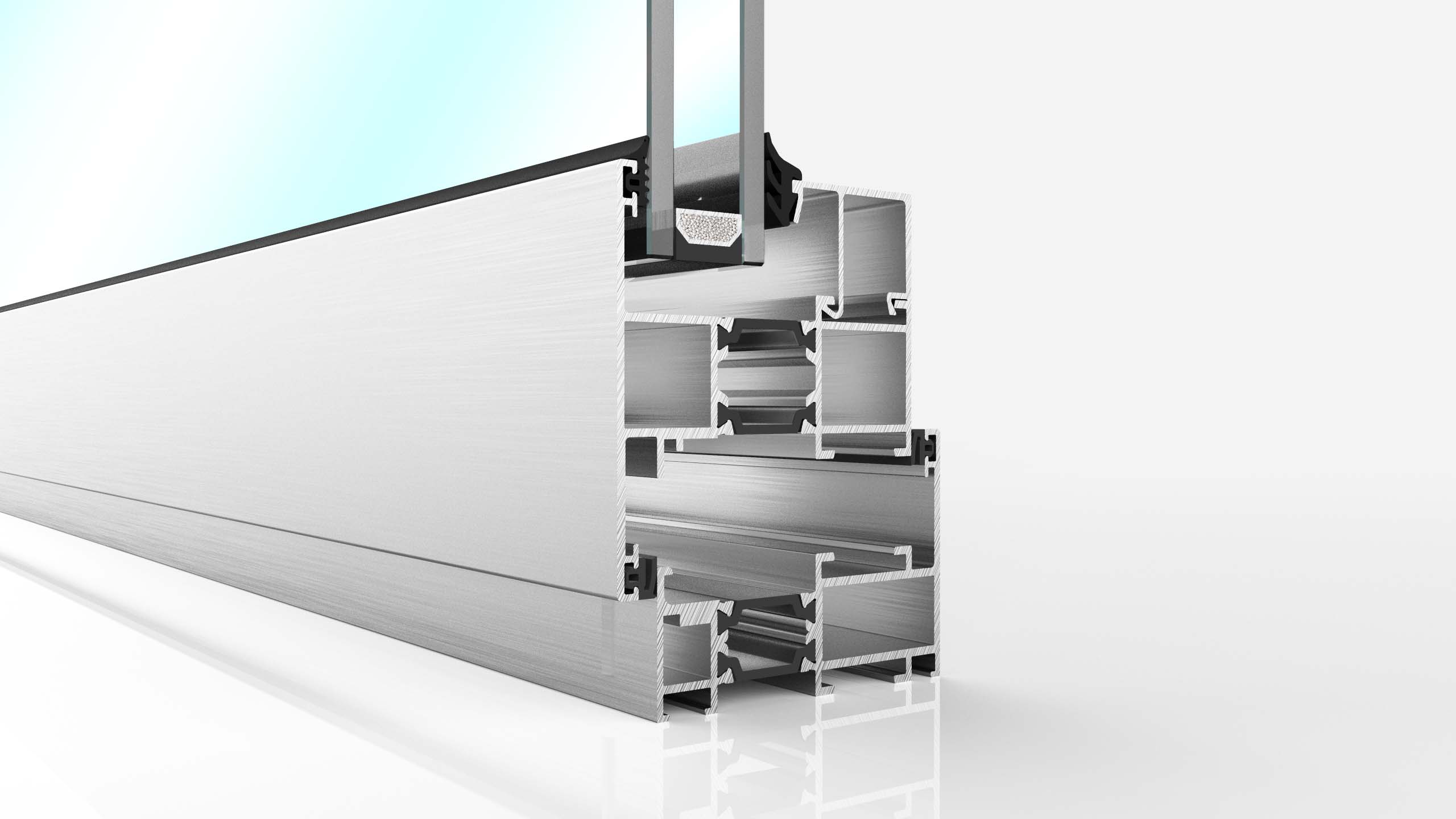

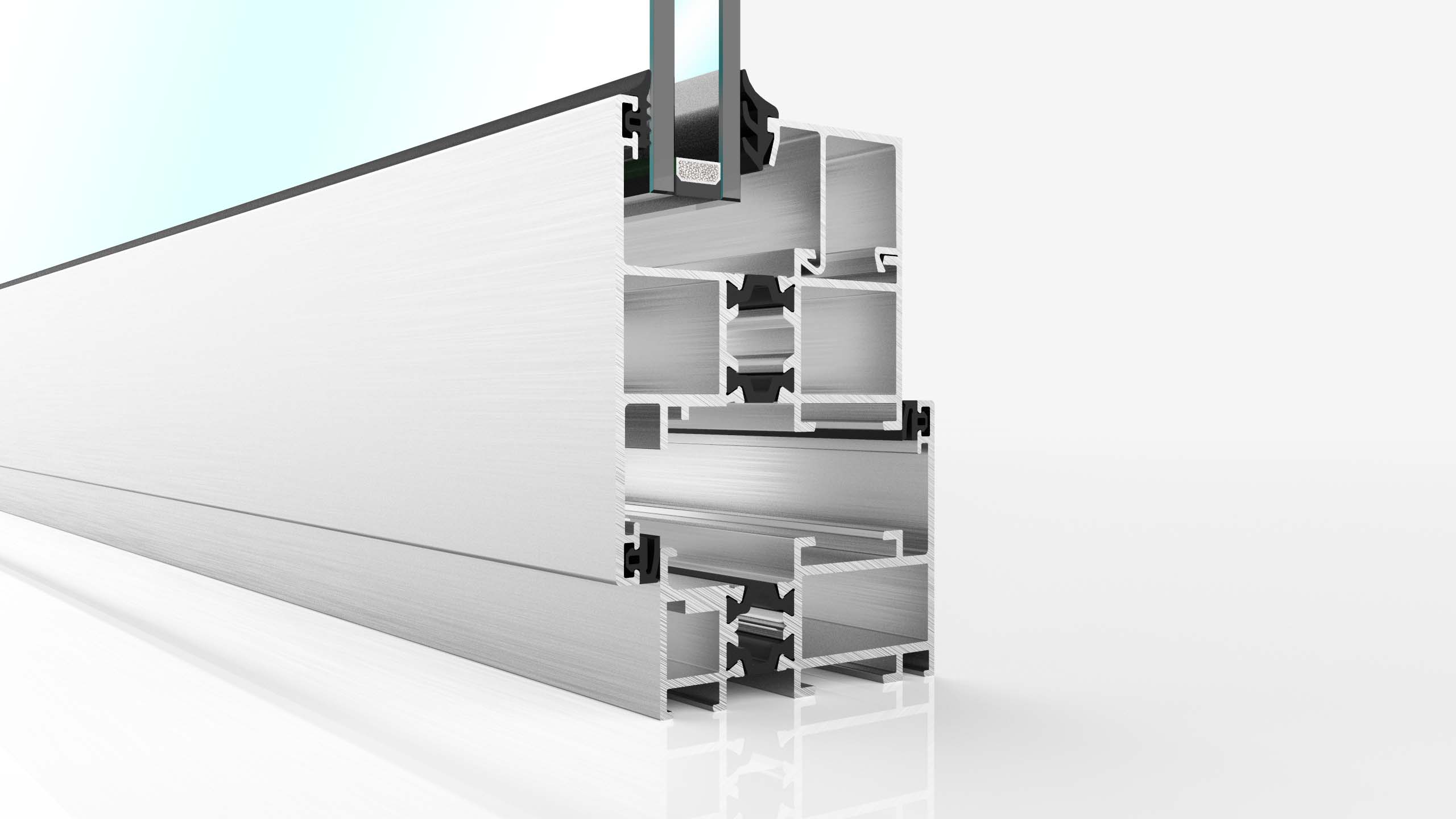

| 62TTE | 72TTE | |
|---|---|---|
| Performances | ||
| air_permeability : | 国际8级 | 国际8级 |
| water_resistance : | 国际6级 | 国际6级 |
| wind_load : | 国际9级 | 国际9级 |
| Uw value W/m²K (Double glazing) : | from 2.13 | from 1.82 |
| Uw value W/m²K (Triple glazing) : | from 1.70 | from 1.40 |
| Size limits | ||
| frame_dimension : | 62.8mm | 73.2mm |
| sash_dimension : | 62.8mm | 73.2mm |
| min_glass_thick : | 12 | 18 |
| Max glass thickness (mm) : | 40 | 50 |
| Max sash width (mm) : | 750mm | 750mm |
| Max sash height (mm) : | 1500mm | 1500mm |
| Maximum sash load (kg) : | 46KG | 46KG |
| Solutions | ||
| Outward opening : | yes | yes |
