Casement Windows
Turn & tilt casement windows are very popular in Europe. The sash can be opened in turn or tilt mode through the operation of the handle.
In most cases, the sash will be under tilt mode for natural ventilation.
May operate the handle and turn the sash for quick ventilation if need. And it's much easier and safer to clean the sash inside.
Excellent performance in terms of air permeability, water tightness, wind resistance, thermal insulation and sound reduction.
Available with:
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

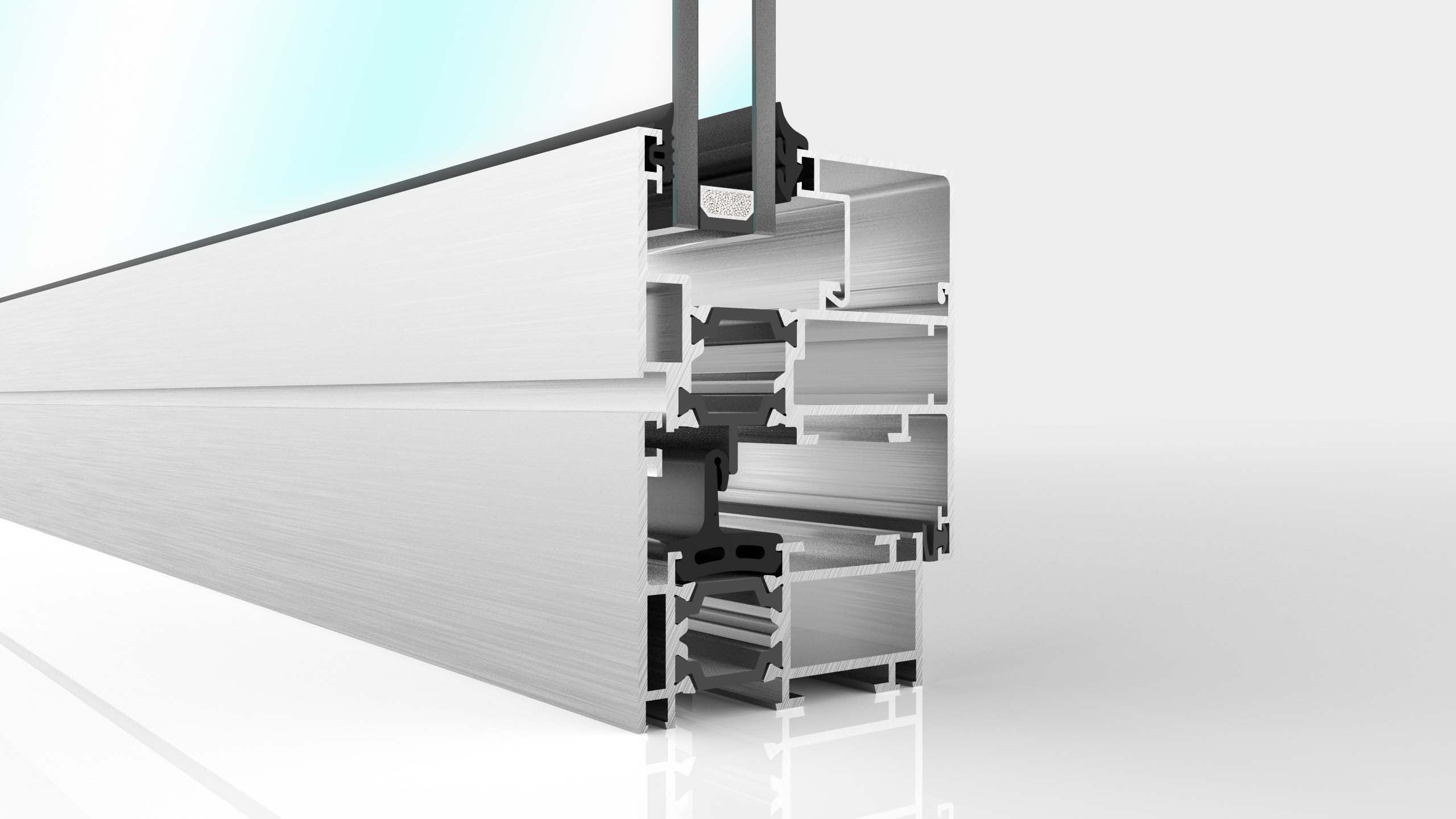

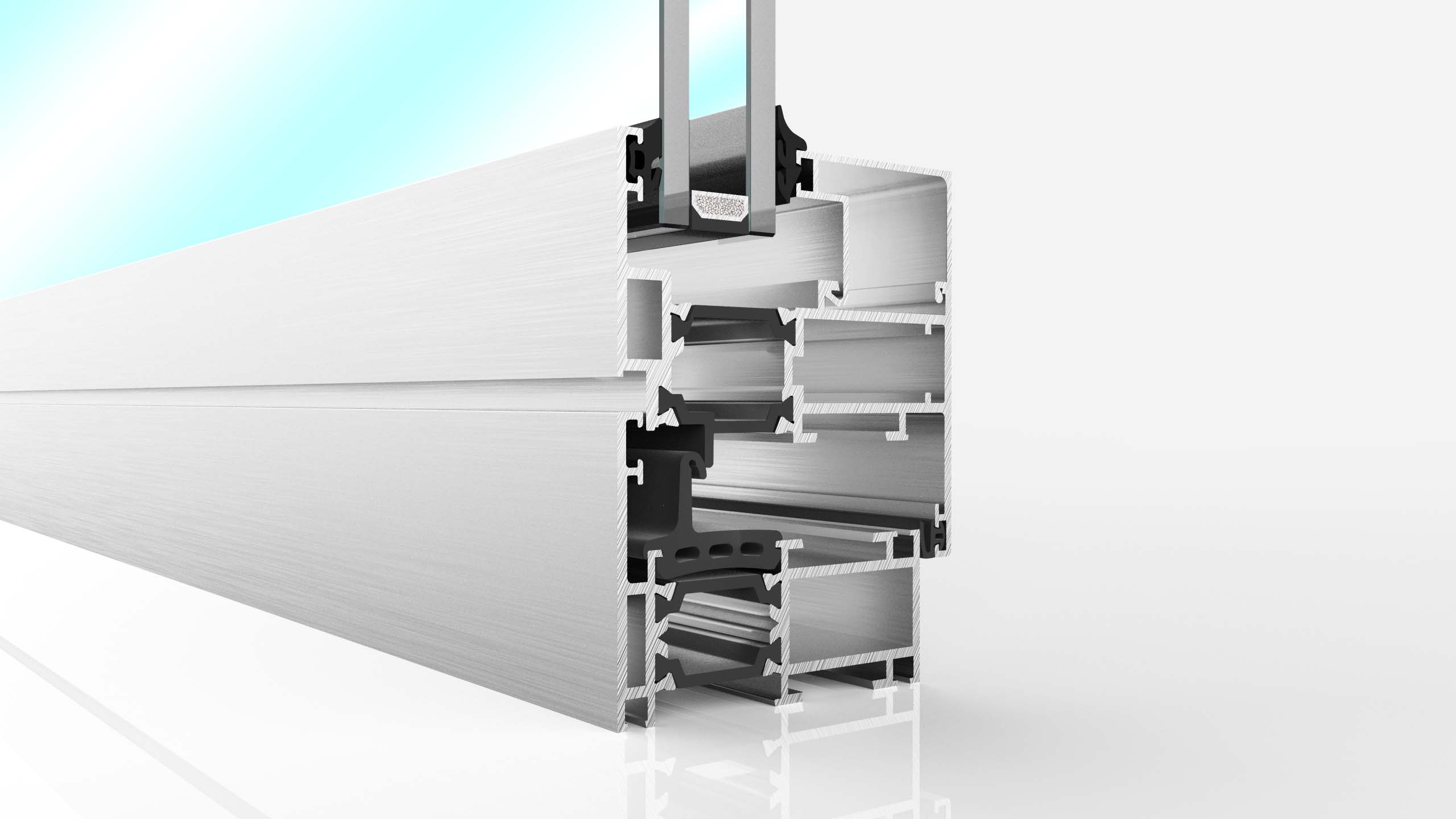

| 70TT | 75TT | |
|---|---|---|
| Performances | ||
| air_permeability : | 国际8级 | 国际8级 |
| water_resistance : | 国际6级 | 国际6级 |
| wind_load : | 国际9级 | 国际9级 |
| Uw value W/m²K (Double glazing) : | from 1.79 | from 1.70 |
| Uw value W/m²K (Triple glazing) : | from 1.38 | from 1.25 |
| Size limits | ||
| frame_dimension : | 62mm | 66mm |
| sash_dimension : | 70mm | 75mm |
| min_glass_thick : | 18mm | 24mm |
| Max glass thickness (mm) : | 45mm | 50mm |
| Max sash width (mm) : | 1500mm | 1500mm |
| Max sash height (mm) : | 2100mm | 2100mm |
| Maximum sash load (kg) : | 130KG | 130KG |
| Solutions | ||
| Inward opening : | yes | yes |
| Tilt & turn : | yes | yes |
